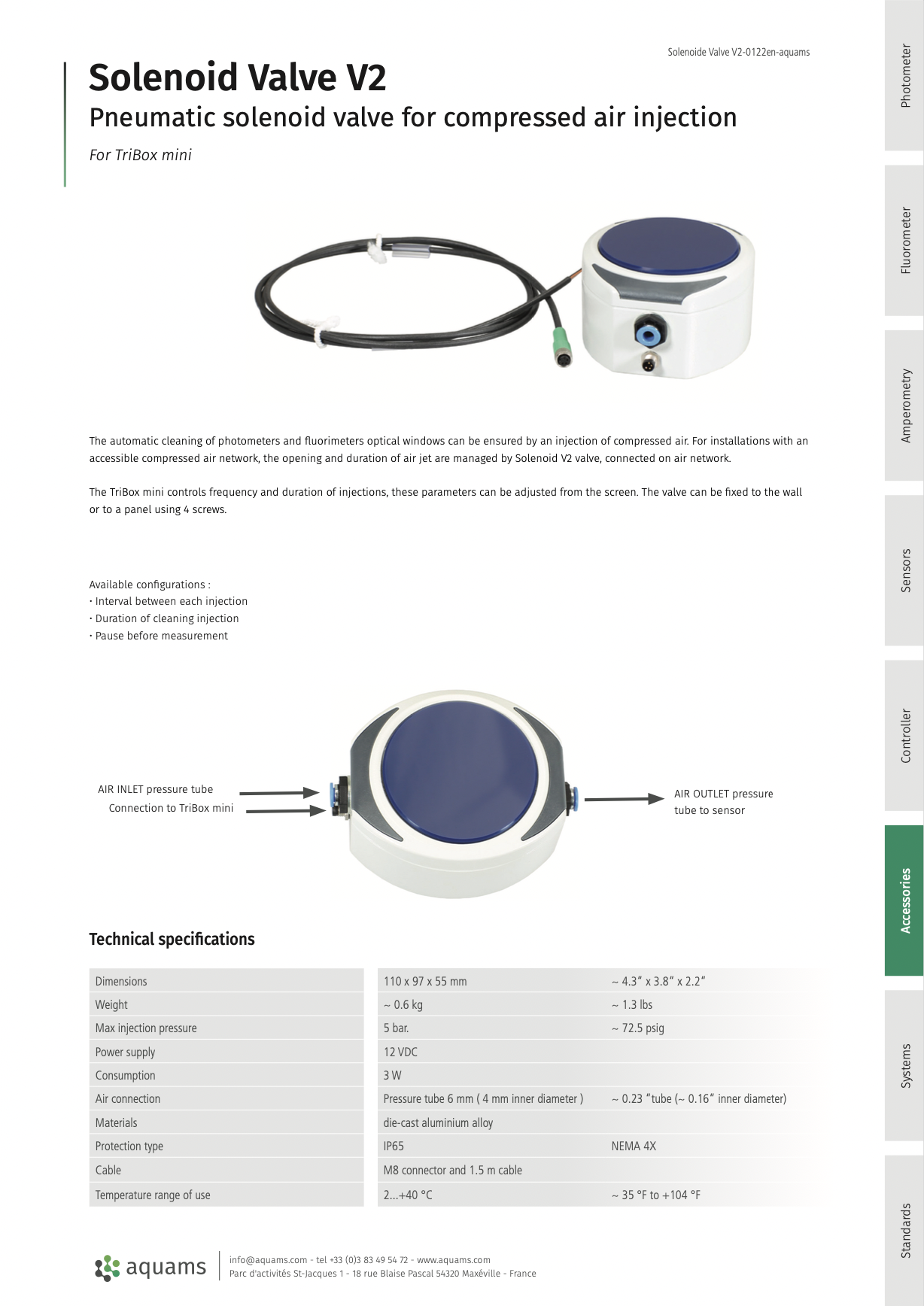

Solenoide Valve V2
Pneumatic solenoid valve for compressed air injection
The automatic cleaning of photometers and fluorimeters optical windows can be ensured by an injection of compressed air. For installations with an accessible compressed air network, the opening and duration of air jet are managed by Solenoid V2 valve, connected on air network.
The TriBox mini controls frequency and duration of injections, these parameters can be adjusted from the screen.
Available configurations :
• Interval between each injection
• Duration of cleaning injection
• Pause before measurement
| Dimensions | 110 x 97 x 55 mm |
|---|---|
| Weight | ~ 0.6 kg |
| Max injection pressure | 6 bar. |
| Power supply | 12 VDC |
| Consumption | 3W |
| Air connection | Pressure tube 6 mm ( 4 mm inner diameter ) |
| Materials | die-cast aluminium alloy |
| Protection type | IP65 |
| Cable | M8 connector and 1.5 m cable |
| Temperature range of use | 2...+40 °C |
