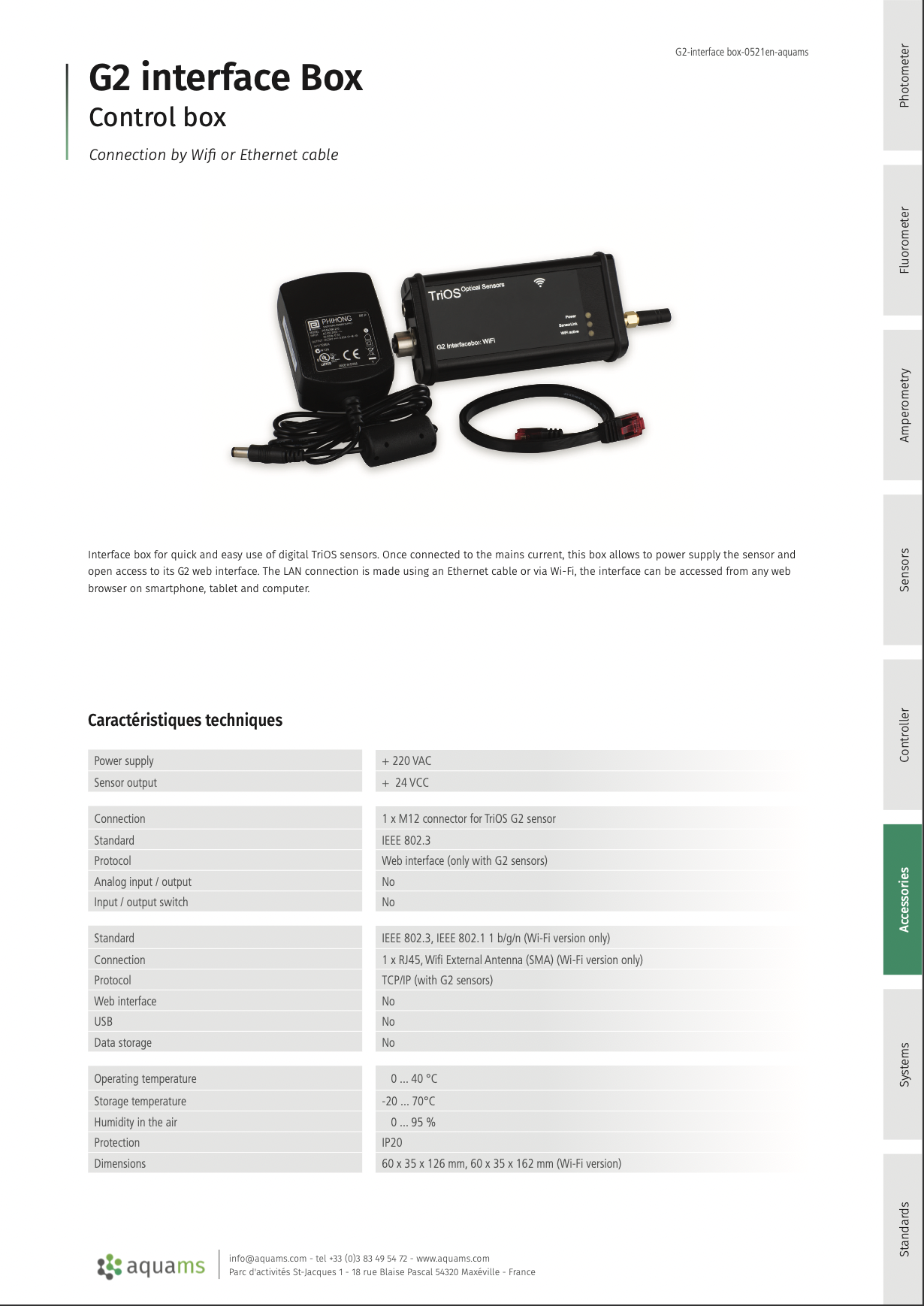

G2 interface Box
220 VAC sensor power supply and access to measurement data
G2 interface boxes, Wifi or ethernet, allow quick and easy use of TriOS digital sensors.
Connected to a 220 VAC socket, the box provides power to the sensor and opens access to its G2 web interface via a Wi-Fi or ethernet connection. The interface is accessible from any web browser on smartphone, tablet and computer.
| Power supply | 220 VAC |
|---|---|
| Sensor output voltage | 24 VDC |
| Consommation d'énergie | <1.5 W + consumption of the associated sensor |
| Sensor interface - connector | M12 plug for TriOS G2 sensor |
| Protocol | web interface (with G2 sensors only) |
| Standard | IEEE 802.3, IEEE 802.11 b / g / n (only for WIFI version) |
| Connection | 1x RJ-45, external WIFI antenna (SMA) (WIFI version only) |
| Protocol | TCP / IP (only for G2 sensors) |
| Web interface | accessible on any browser from a computer, tablet or smartphone |
| Operating temperature | 0 ... 40 °C |
| Protection type | IP20 |
| Dimensions | 60x35x126 mm / 60x35x162 mm with antenna |
